Actuator VGT / VTG turbo actuator

2037560 VGT actuator 2037560: symptoms, fault codes and OEM cross references.

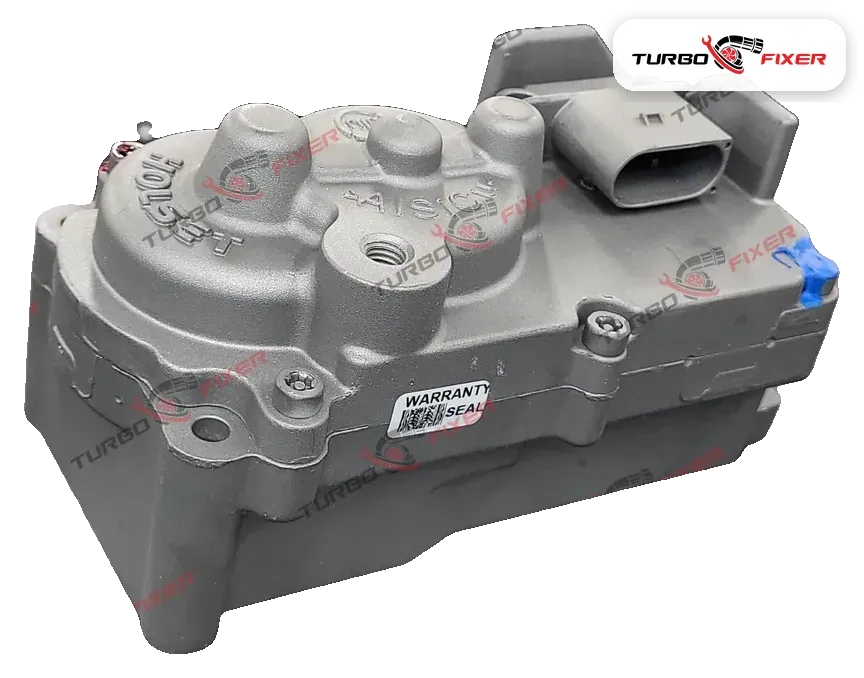

Electric VGT actuator used with Holset HE400VG and HE500VG turbochargers on DAF MX Euro 6 engines. It is often blamed for boost faults, but the source reports stress that the turbo vane mechanism must be checked first.

Defect symptoms

What drivers and mechanics usually notice.

These are practical, workshop-style symptom phrases written for search and support conversations. They are not a substitute for live diagnostic data.

Truck in limp mode with RPM capped around 1300

No boost until the engine is well past 1200 rpm

Turbo hunts or surges instead of building boost smoothly

Actuator clicks but vane lever barely moves

Intermittent limp mode after hot restart

Exhaust brake retard force is reduced

VGT actuator self-test fails in diagnostic software

Failure causes

Why 2037560 usually fails

Internal worm-gear wear and DC motor brush wear.
Position-sensor drift or feedback voltage instability.
Overcurrent caused by a soot-bound vane unison ring.
Coolant or oil contamination damaging the actuator electronics.
Heat-soak after hard shutdowns cooking internal components.

Diagnostic tips

Before replacing the part

Detach the actuator linkage and verify that the turbo vane lever moves freely through its travel.
If a new actuator fails immediately, suspect mechanical vane lock inside the turbine housing.
Scope the position feedback signal if the fault is intermittent and temperature dependent.

Fault codes

P-codes reported with 2037560.

Code	Lookup hint	Related symptom area
P0045	Turbo / VGT control circuit open or inactive	Truck in limp mode with RPM capped around 1300
P0046	Turbo / VGT control range or performance issue	Truck in limp mode with RPM capped around 1300
P2562	Turbocharger boost control position sensor circuit	Truck in limp mode with RPM capped around 1300
P2563	Turbocharger boost control position sensor range/performance	Truck in limp mode with RPM capped around 1300
U1159	VGT actuator communication or network report	Truck in limp mode with RPM capped around 1300
P0299	Underboost or boost pressure lower than commanded	Truck in limp mode with RPM capped around 1300

OE / OEM cross references

All numbers grouped under the canonical 2037560 page.

Keeping every duplicate and replacement number visible on the same canonical page helps exact OEM searches without creating hundreds of duplicated pages.

Fitment notes

Truck, engine and year ranges from the reports.

Truck model	Engine	Years	HP
XF 106	MX-11 / MX-13 Euro 6	2013-2023	320-530
CF 85	MX-11 / MX-13 Euro 6	2013-2022	320-530
CF 430	MX-11 Euro 6	2017-2023	430
CF 480	MX-13 Euro 6	2017-2023	480
CF 530	MX-13 Euro 6	2017-2023	530

Fitment is structured from user-provided reports and must be verified by VIN, installed connector and physical part markings before supply.

FAQ

Questions about 2037560.

What are common failure symptoms for 2037560?

Common symptoms include Truck in limp mode with RPM capped around 1300; No boost until the engine is well past 1200 rpm; Turbo hunts or surges instead of building boost smoothly; Actuator clicks but vane lever barely moves. Exact symptoms vary by truck, software level and related faults.

Which fault codes are linked with 2037560?

Reported fault codes include P0045, P0046, P2562, P2563, U1159, P0299.

Can I order by OEM number 2037560 only?

Use the OEM number as a starting point, then confirm by VIN, engine type, installed connector and part photos because some reports contain duplicate or conflicting OEM references.
